i
Представените в картата на продукта графични материали, както и снимки и филми, представят начина на действие на дадената функция и е възможно, че не представят точно дадения модел.

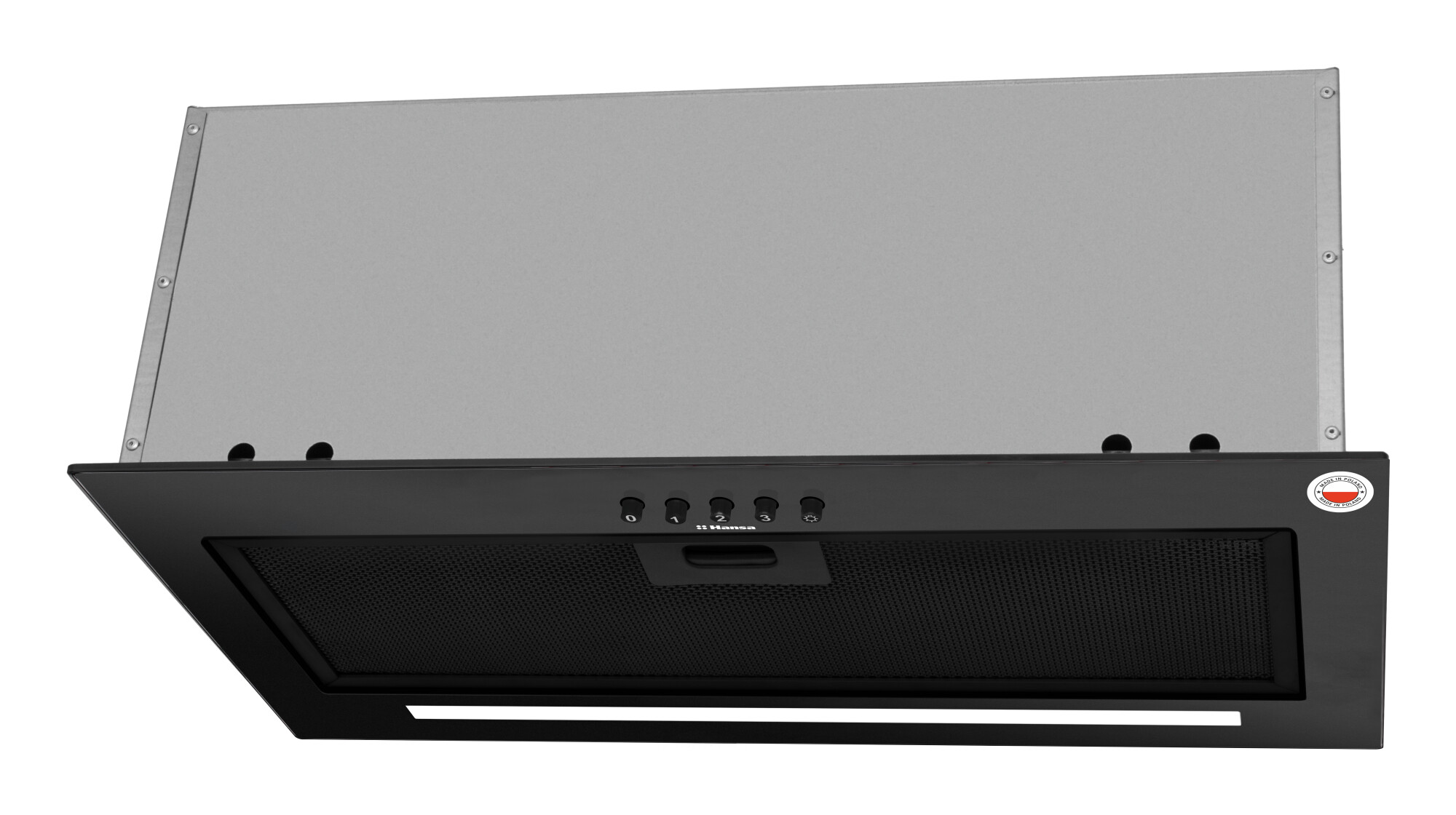

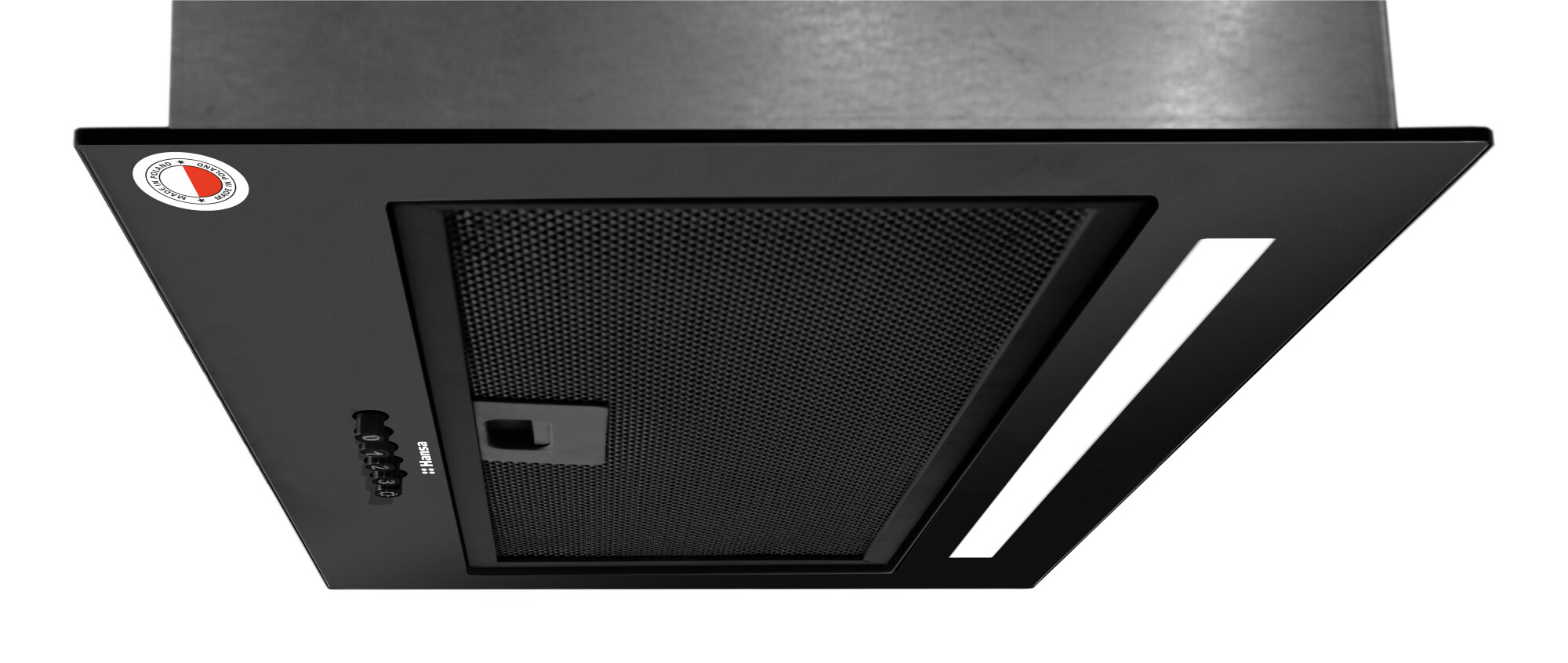

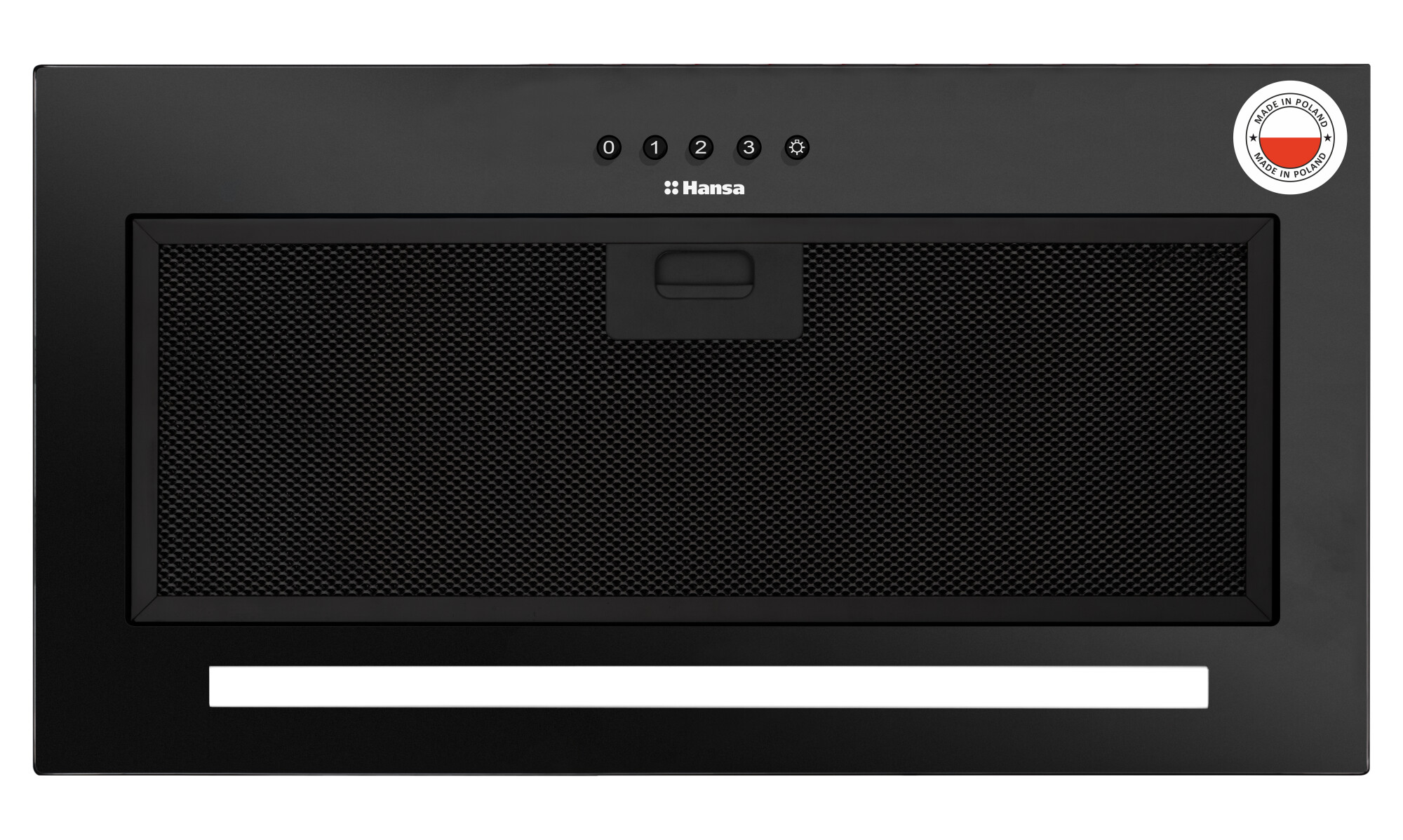

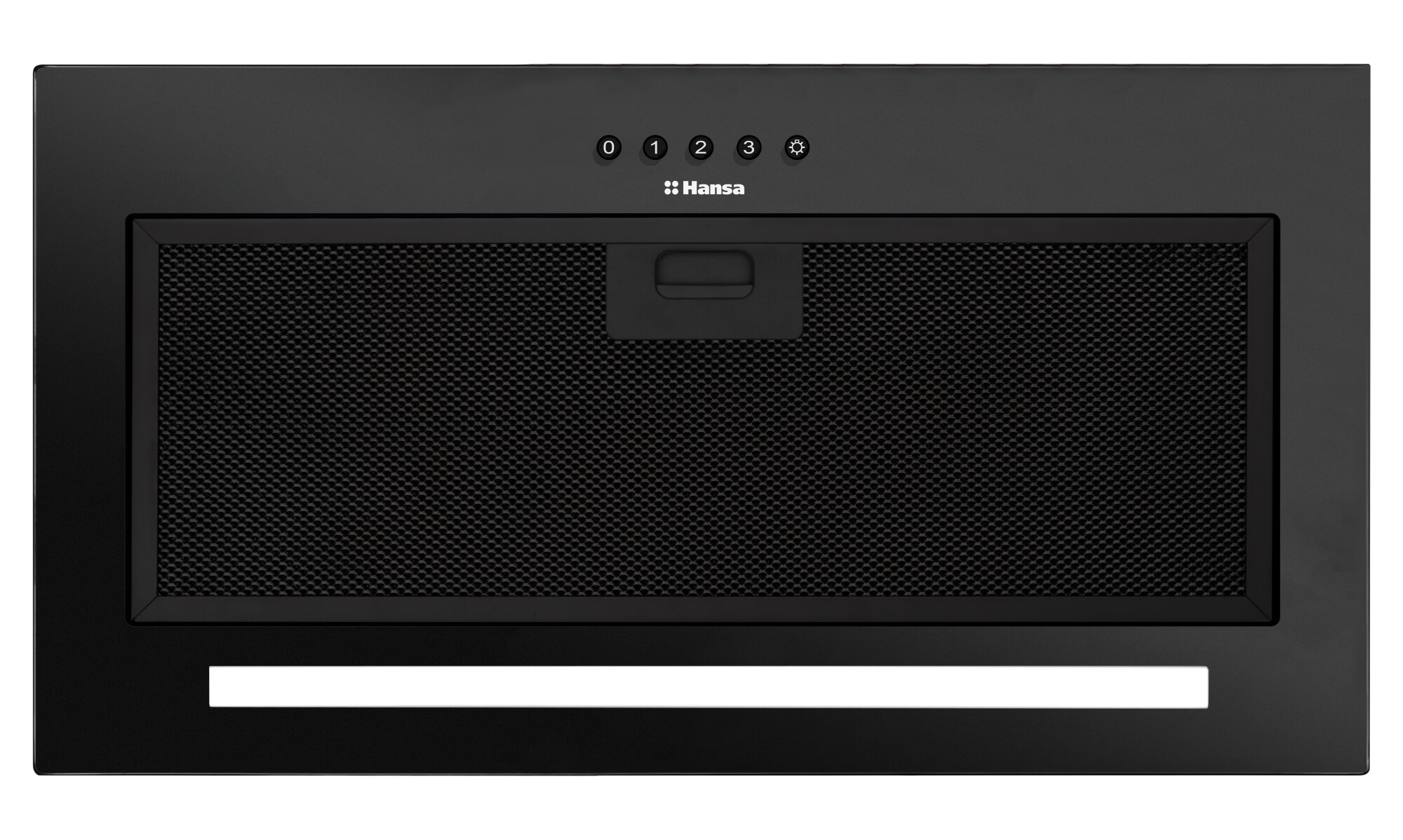

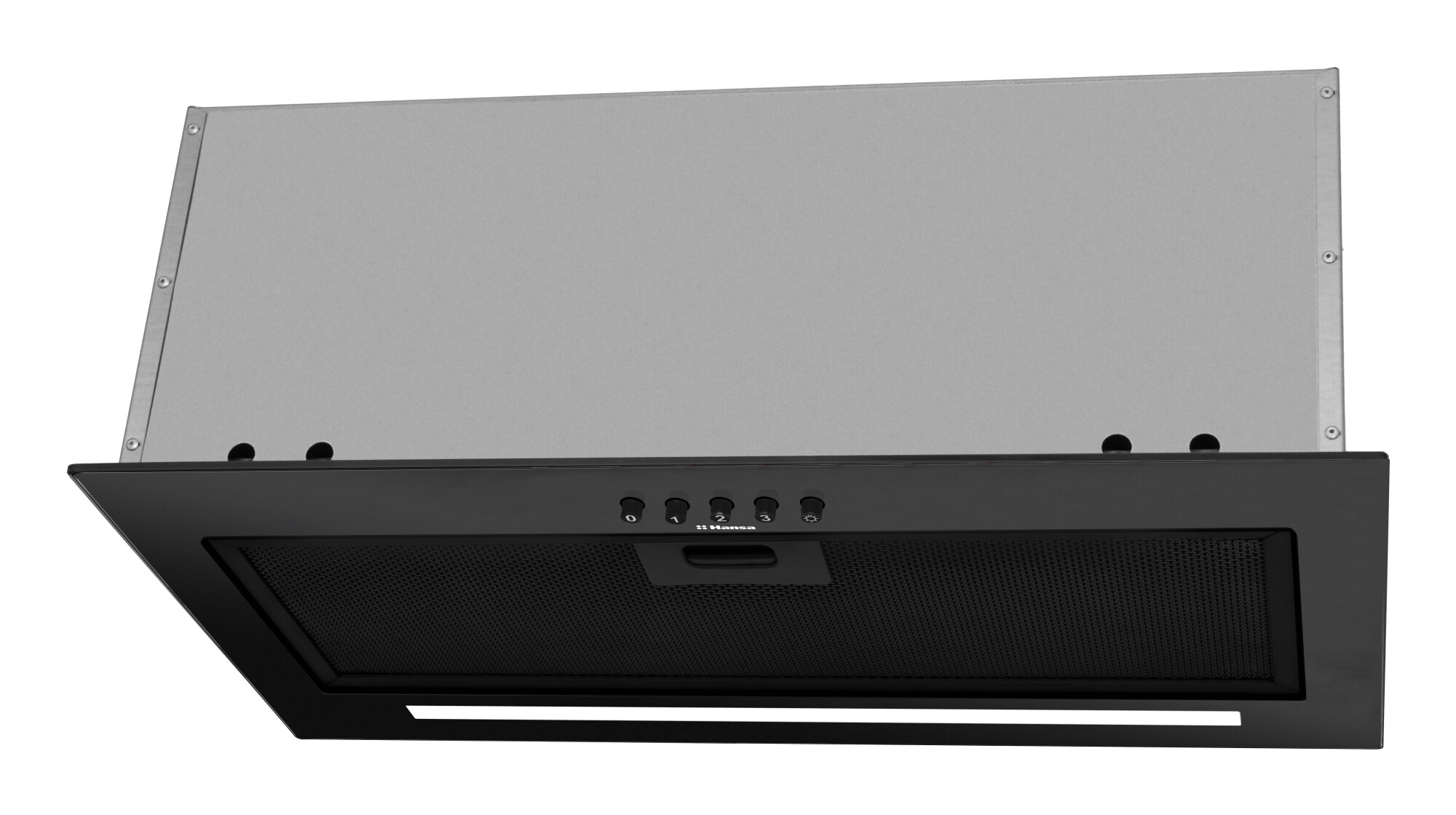

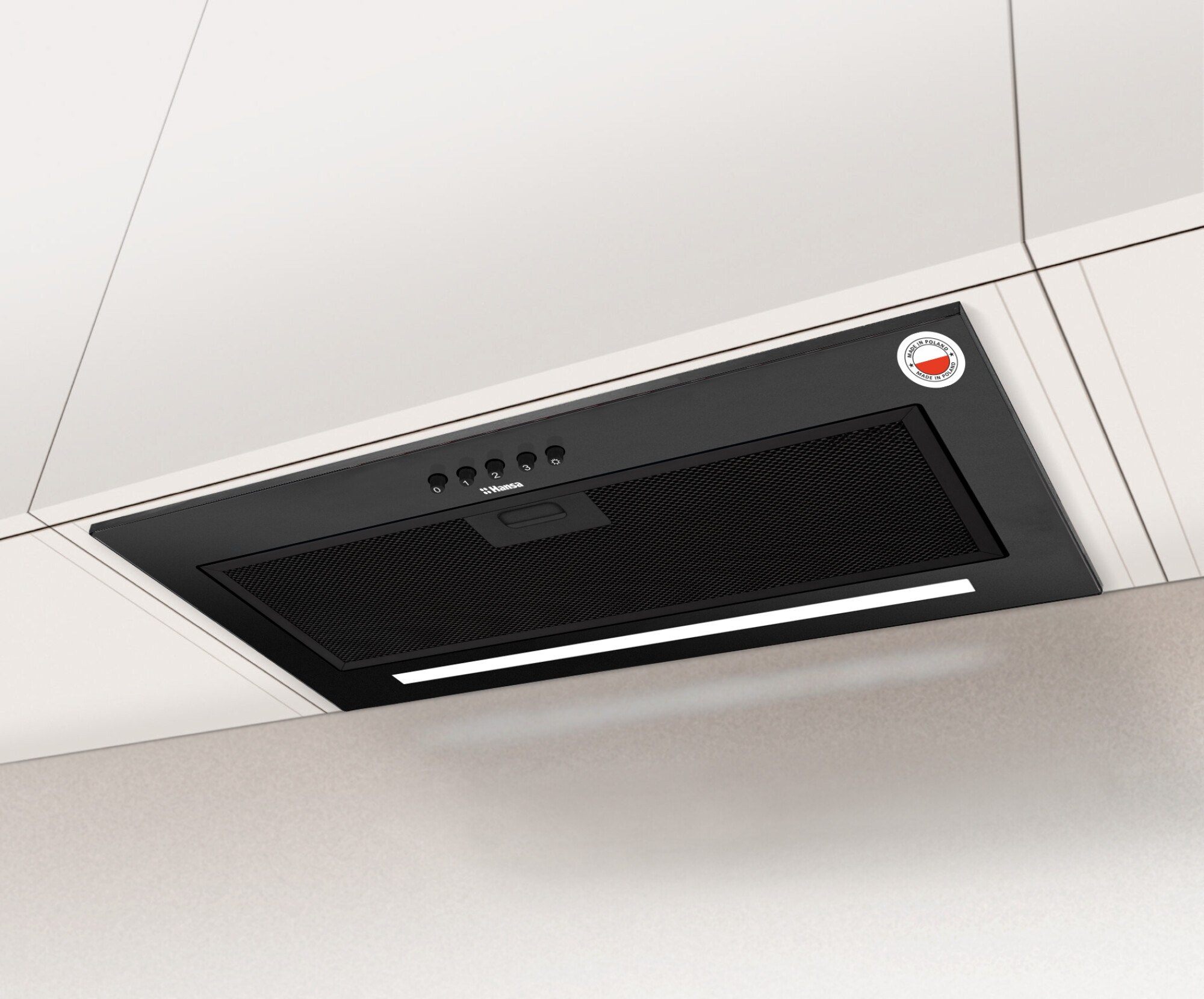

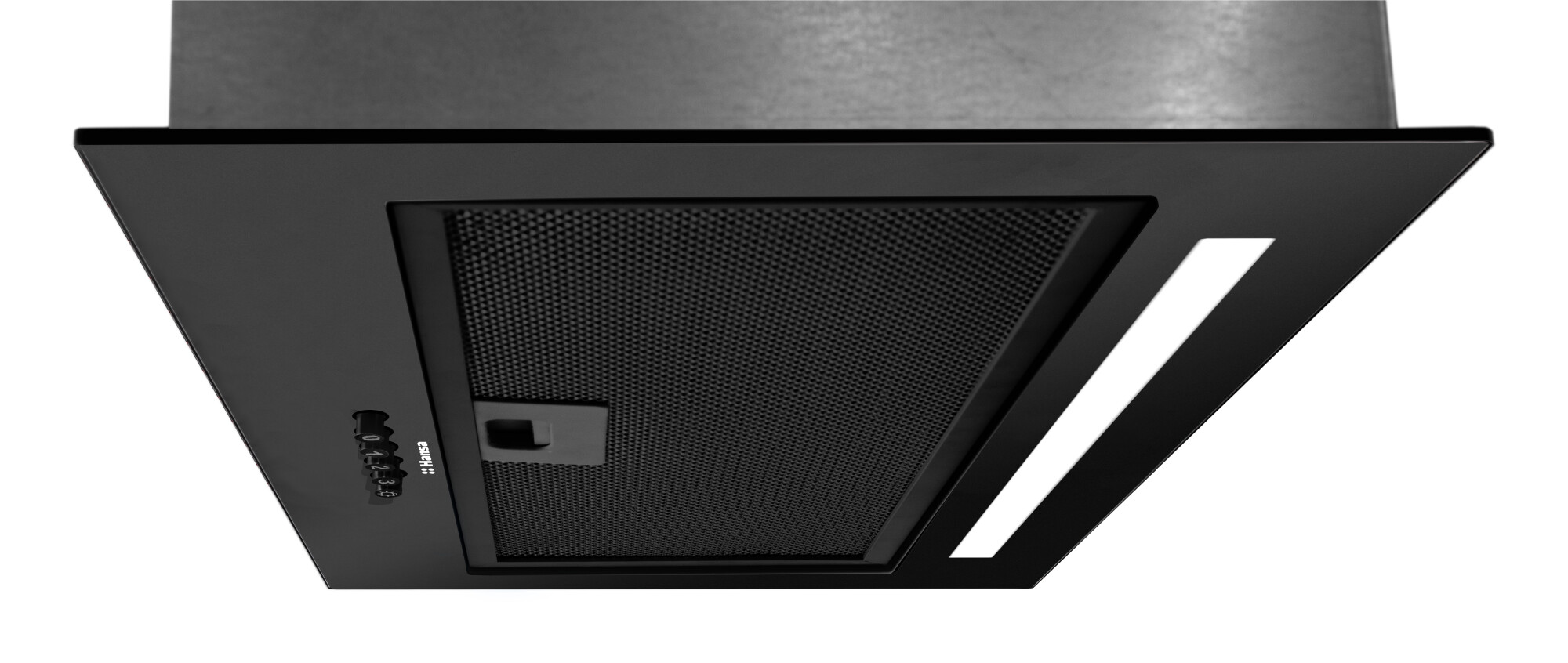

OMC6272BH
-
Функции на уреда
- Accessories -
- Air flaps Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
-
Оборудване
- Number of carbon filters 2
- Number of grease filters 1
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Push buttons
- Type of grease filters Aluminium frame
- Carbon filter type FWK 145
-
Технически данни
- Frequency 50-60Hz
- Air flow at 1 speed - extractor by EN 61591 115 m3/h
- Air flow at 2 speed - extractor by EN 61591 115 m3/h
- Air flow at 3 speed - extractor by EN 61591 280 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 280 m3/h
- Air Flow at Minimum Speed in Normal Use 115 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 173.5 m3/h
- Air Pressure at Best Efficiency Point P BEP 199 Pa
- Годишна консумация на енергия 59.7 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 186 lux
- Control panel on one side/two sides One side
- Dimensions of grease filter 467x162x8 Black
- Display color No
- Distance from light cover to wall 45 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 94.8 W
- динамична ефективност на флуидите 10.1
- динамична ефективност на флуидите E
- Grease Filtering Efficiency - GFE hood 56 %
- ефективност на филтриране на мазнини E
- Internal/external motor Internal
- Main lighting colour temperature [K] 4000
- Мощност на светлина 31 lux/W
- Клас на ефективност на осветлението A
- Мощност на светлина A
- Maximum Possible Air Flow 280 m3/h
- Motor unit rated power 115 W
- Motor type/model K-28 MT
- Net depth 285 mm
- Net height max 168 mm
- Net height min 168 mm
- Нетно тегло 8.7 kg
- Net width 550 mm
- Ниво на шум 45 dB
- Ниво на шум 50 dB
- Ниво на шум 63 dB
- Nominal Power of the Lighting System - W L 6 W
- Number of motor units 1
- Number units of main lighting 1
- Диаметър на изходящ въздух 150 mm
- Type of plug or cable Euro plug
- Power cabel length 150 cm
- Power rating 121 W
- Захранващо напрежение 220-240V
- Power unit of main lighting 6 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 45 dB
- Ниво на шум 63 dB
- Time Increase Factor - f 1.6
- Type of main lighting LED strip
